High Power Bidirectional Power Supply: Advanced Energy Management Solution for Industrial Applications

high power bidirectional power supply

A high power bidirectional power supply represents a sophisticated piece of electrical equipment that can both source and sink power, enabling seamless two-way power flow. This versatile device can function as both a power source and an electronic load, making it invaluable in various applications. The system incorporates advanced power electronics and control algorithms to manage power flow in both directions efficiently. These supplies typically feature precise voltage and current control, rapid response times, and high conversion efficiency. They operate across wide voltage and current ranges, supporting both AC and DC power conversion. The technology employs sophisticated switching techniques and power semiconductor devices to achieve clean power conversion with minimal distortion. Key features include programmable operation modes, protection mechanisms against overcurrent and overvoltage, and remote monitoring capabilities. Modern units often integrate communication interfaces for system integration and data logging. These supplies find extensive use in electric vehicle charging systems, renewable energy storage solutions, grid simulation, and advanced research applications. The ability to seamlessly transition between source and sink modes makes them particularly valuable in testing energy storage systems and developing smart grid technologies.

The high power bidirectional power supply offers numerous compelling advantages that make it an essential tool in modern power applications. First, its dual-functionality as both a power source and sink eliminates the need for separate equipment, resulting in significant cost savings and reduced space requirements. The precise control capabilities ensure optimal power management, leading to improved system efficiency and reliability. Users benefit from the flexible operation modes that can be easily programmed to meet specific application requirements. The rapid response time enables seamless switching between source and sink modes, critical for testing and development applications. Advanced protection features safeguard both the device and connected equipment, reducing the risk of damage and downtime. The integration of modern communication interfaces simplifies system automation and remote operation, enhancing productivity and reducing manual intervention. Energy recovery capabilities during sink mode operation contribute to lower operating costs and improved energy efficiency. The wide operating range accommodates various voltage and current requirements, making it a versatile solution for multiple applications. High accuracy and stability in both modes ensure consistent performance and reliable test results. The modular design approach facilitates easy maintenance and future upgrades. Built-in monitoring and diagnostic features help prevent issues before they become critical. The ability to simulate various power conditions makes it invaluable for product development and certification testing.

Tips And Tricks

$The Global Impact of AC\/DC Test Power Supplies$

Mar

The Global Impact of AC\/DC Test Power Supplies

Mar

Enhancing User Experience with Energy Storage Inverter Test Power Supplies

Mar

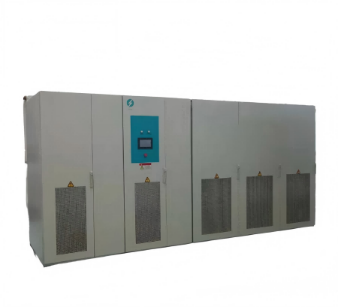

Ensuring Safety and Efficiency with Power Supplies for Aging Tests

Mar

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

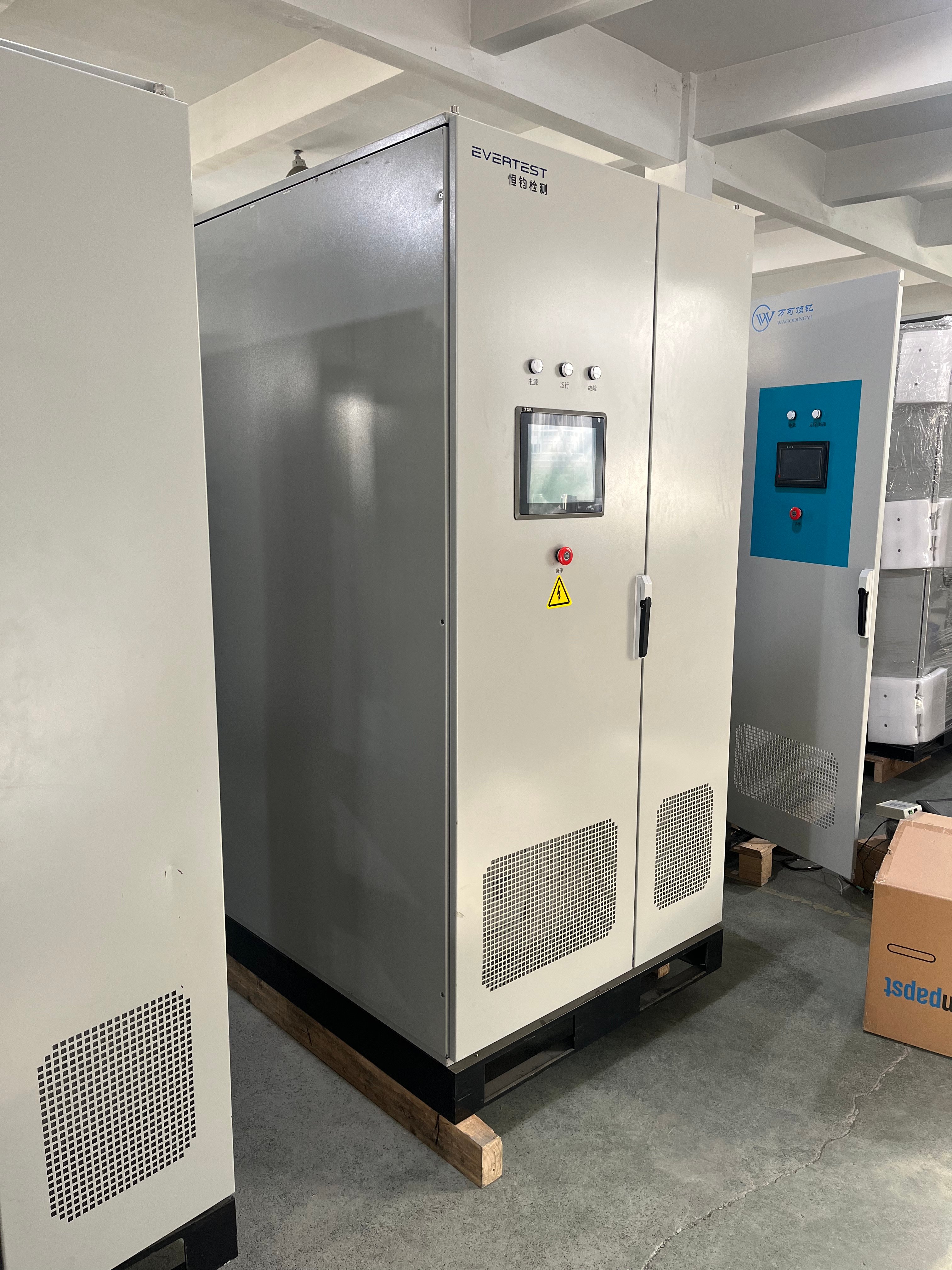

Advanced Power Control System

The sophisticated power control system represents the core technology of the high power bidirectional power supply. It utilizes state-of-the-art digital signal processing and advanced algorithms to achieve precise regulation of voltage and current in both directions. The control system maintains exceptional stability even during rapid load changes, with response times typically in milliseconds. This precise control enables smooth transitions between source and sink modes without interruption to the power flow. The system continuously monitors and adjusts operating parameters to maintain optimal performance while preventing harmful conditions like overcurrent or overvoltage. Advanced features include programmable slew rates, sequence control, and multiple regulation modes to suit different application requirements.

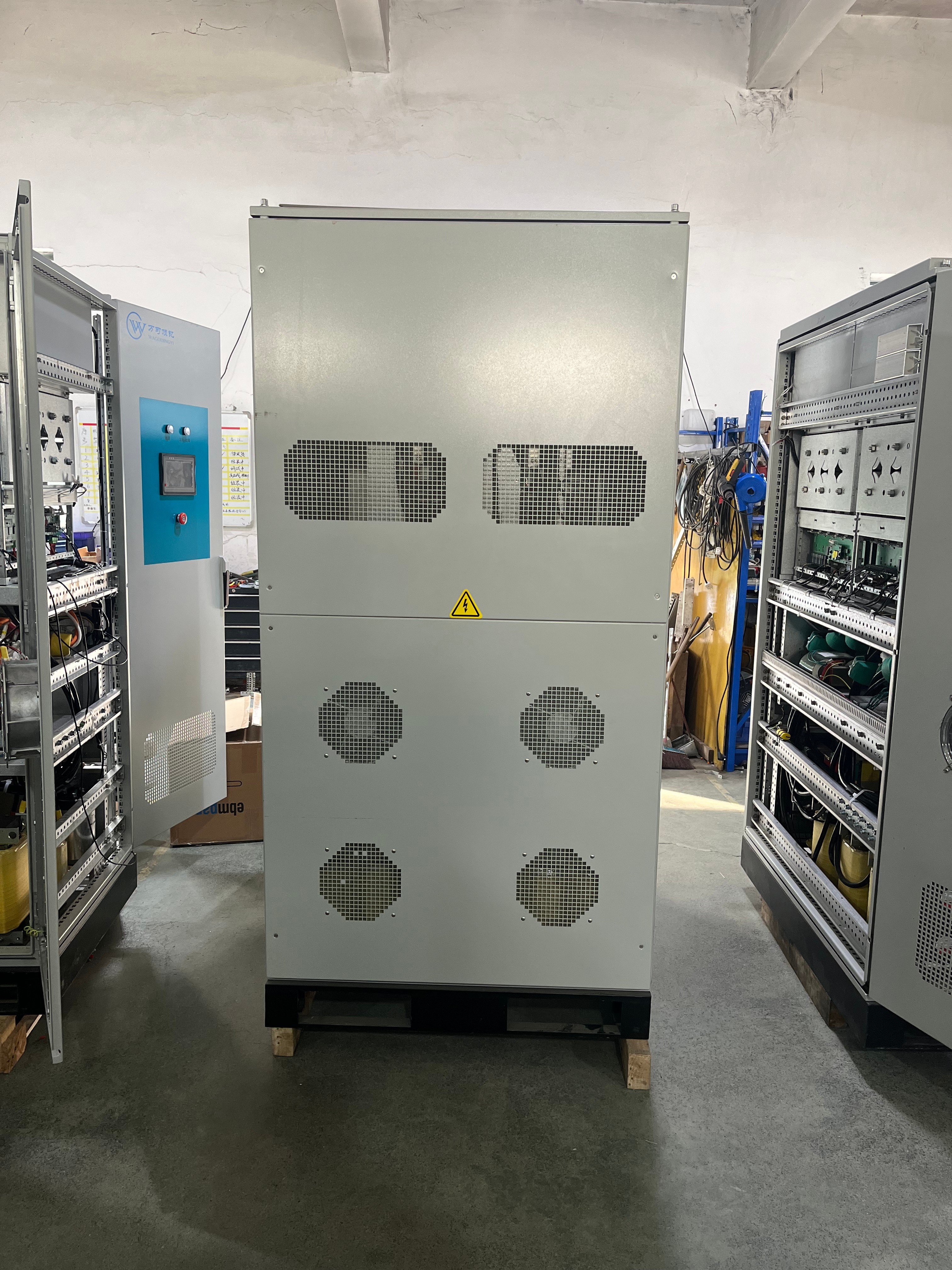

Efficient Energy Management

The bidirectional power supply excels in energy management through its innovative power circulation technology. During sink mode operation, instead of dissipating energy as heat, the system can redirect power back to the grid or other devices, significantly improving overall system efficiency. This energy recovery capability can lead to substantial cost savings in high-power applications. The system maintains high efficiency across a wide operating range, typically exceeding 90% in both directions. Sophisticated power factor correction ensures clean power conversion with minimal harmonic distortion, meeting strict regulatory requirements for grid-connected operation.

Comprehensive Protection Framework

Safety and reliability are ensured through a comprehensive protection framework integrated into every aspect of the system. Multiple layers of hardware and software protection mechanisms work together to prevent damage from conditions like overcurrent, overvoltage, overtemperature, and reverse polarity. The system features fast-acting protection circuits that can respond to fault conditions within microseconds, safely shutting down operation before damage can occur. Sophisticated monitoring systems continuously track all critical parameters, providing real-time status updates and logging capabilities for system analysis and maintenance planning. The protection framework includes isolation barriers between power and control circuits, ensuring operator safety and equipment protection.
